Agitor

DETAILS

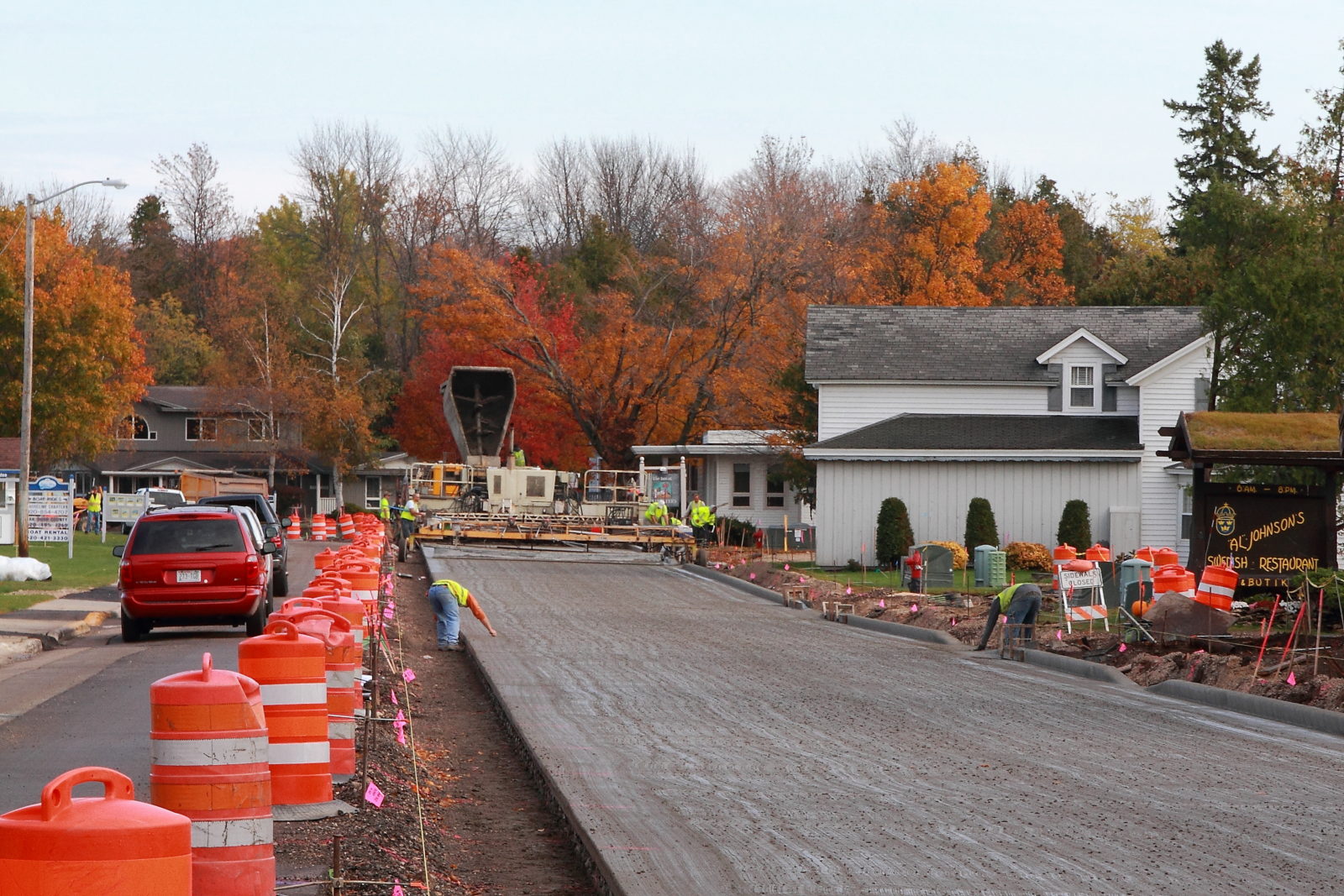

The Maxon Agitor is the only open-top concrete carrier offering both quick loading and fast or metered discharge.  Ideal for high speed paving and mass pour applications, the Agitor’s unique design also allows the operator to handle low slump or large aggregate concrete.

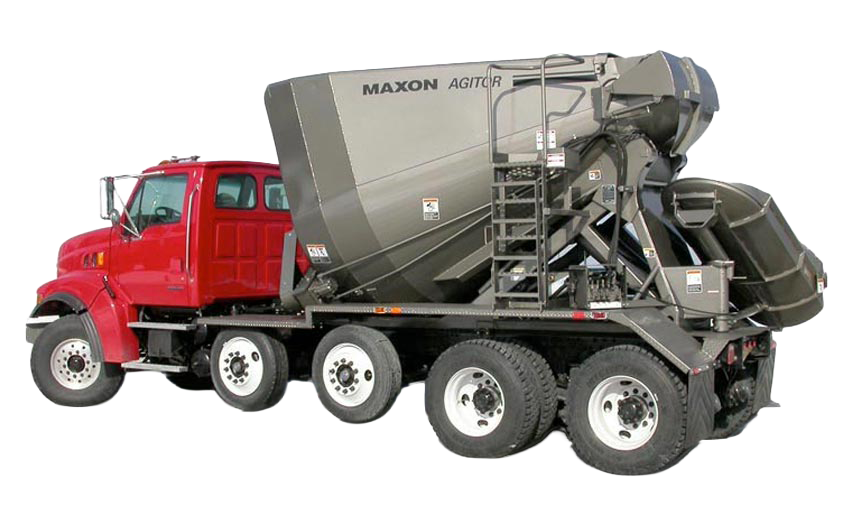

Maxon Agitor

Key Features


  • All hydraulic drive
  • Open Top for easy loading
  • 20 seconds to full hoist
  • 36” (914mm) gate opening for rapid discharge
  • Various chute options for placing concrete direct to grade, bucket, or conveyor/pump hopper
  • Agitator with adjustable pitch paddles
  • Discharges 12 yd3 (9m3) of concrete in 20 seconds to a belt placer or direct to grade through chutes

Technical Specifications


CAPACITY

6, 8, 10, 12, and 20 yd3 (4.6,6.1, 7.6, 9.1, 15.3 m3 )


WEIGHT W/ FLUIDS

9,200lbs (4173 kg) *


LENGTH

143 in (3632 mm) *


WIDTH

96 in (2438 mm)


HEIGHT

96.5 in (2451 mm)



*Note: 10 yd3 unit



Options


  • Skid-mounted, truck-mounted, or rail car- mounted
  • Heavy Duty Agitators & Drive (for large aggregate concrete)
  • Swing Away High Dump Chutes
  • Access Ladders
  • Roll Back and Steel Covers
  • SCC Agitators
  • Water Tanks
  • Fenders
  • Direct Drive Agitation
