Mobile Agitor
Mobile Agitor
DETAILS

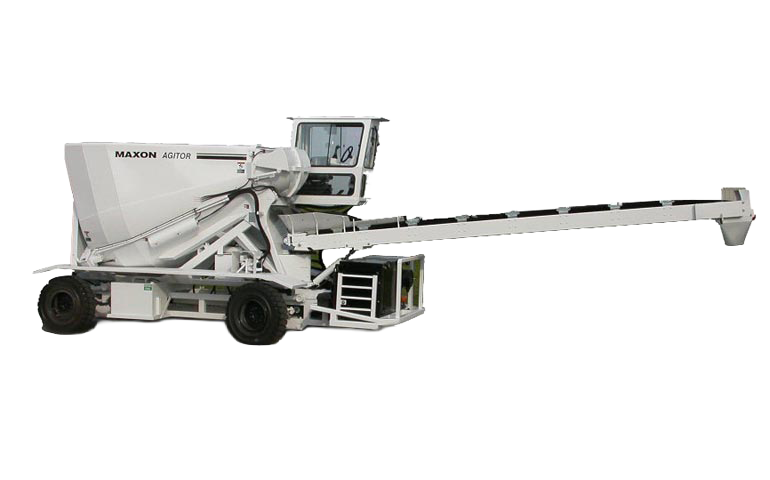

The Maxon Mobile Agitor is the first self-propelled concrete transporter to combine industry leading haul capacity, concrete agitation in transit, and maneuverability in a single unit.
The 10 yd3 (7.6 m3) haul body is over 50% larger than the competition, reducing the number of haul units while increasing plant productivity. The unique agitation shaft ensures quality concrete with every load, and is ideal for both conventional and SCC concrete mix designs. Maxon’s custom engineered chassis (with 2/4 wheel steer and 2/4 wheel drive) combined with a 180⁰ swing 25’ (7.6m) long placing conveyor offers owners unmatched precision from plant to placement.
Key Features
- Two wheel or four wheel drive
- Two wheel or four wheel steering
- 155 hp (116kw) Cummins diesel engine
- 25’ (7.62m) conveyor for direct placement
- 36” (914mm) gate opening for metered or rapid discharge
- Agitator with adjustable pitch paddles
- Elevated operator position for view of concrete placement
Technical Specifications
CAPACITY
10 yd3 (7.6 m3 )
EMPTY WEIGHT
25,200 lbs (kg)
CONVEYOR SWING
180 degrees
LENGTH
419.5” (10655mm) *
WIDTH
104.5” (2654mm)
HEIGHT
156” (3962mm)
* Note: Includes 25’ (7.62 m) conveyor
Options
- Coordinated Crab/Conventional Four Wheel Steering
- Access Ladder
- SCC Agitator
- Water Tank
- Enclosed Cab
